Features Of LTS Series Ceramic Filter:
Center frequency: 4.5MHz, 5.5MHz, 6.0MHz, 6.5MHz
Low insertion loss
Low cost
Applications: TV, VCR stage, FM receiver, etc
RoHS Compliant
Electrical Specifications For LTS Series Ceramic Filter
| Part Number | Center Frequency (MHz) | 3dB Band Width (KHz) Min | 20dB Band Width (KHz) Max | Insertion Loss (dB) Min | Spurious Attenuation (9~12MHz) (dB) Min. | Input-Output Impedance (Ω) |
|
| LTS4.5MCB | 4.500 | fo±60 | 600 | 6.0 | 30 | 1000 |
| LTS4.5MDB | 4.500 | fo±70 | 750 | 6.0 | 30 | 1000 |
| LTS5.5MCB | 5.500 | fo±60 | 600 | 6.0 | 30 | 600 |
| LTS5.5MDB | 5.500 | fo±80 | 750 | 6.0 | 30 | 600 |
| LTS6.0MCB | 6.000 | fo±60 | 600 | 6.0 | 30 | 470 |
| LTS6.0MDB | 6.000 | fo±80 | 750 | 6.0 | 30 | 470 |
| LTS6.5MCB | 6.500 | fo±70 | 650 | 6.0 | 30 | 470 |
| LTS6.5MDB | 6.500 | fo±80 | 800 | 6.0 | 30 | 470 |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X
LTS Ceramic Filter
LTS Ceramic Filter
0.00~0.00

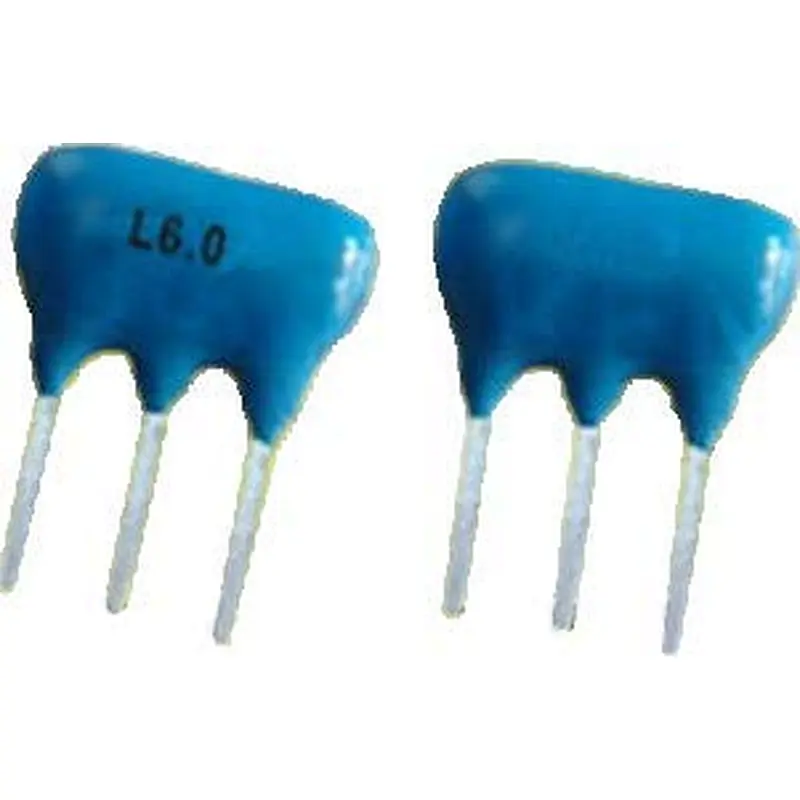

LTS Ceramic Filter Model: LTS Series Ceramic Filter
