Low loss, favorable waveform symmetry, and high selectivity
High reliability, Good waveform symmetry
SMD and DIP type package
Applications: FM receiver, Radio communications, TV, etc
RoHS Compliant
Electrical Specifications For LT10.7 Series Ceramic Filter
Part Number
3dB Band Width (KHz)
20dB Band Width (KHz)
Insertion Loss (dB)
Spurious Attenuation (9~12MHz) (dB) Min.
DIP Type
SMD Type
LT10.7MA5
LTCA10.7MA5
280±50
650
6
30
LT10.7MS2
LTCA10.7MS2
230±50
600
6
40
LT10.7MS3
180±40
520
7
40
LT10.7MJ
150±40
400
10
38
LT10.7MA5A10
LTCV10.7MA5
280±50
590
2.5±2.0
30
LT10.7MS2A10
LTCV10.7MS2
230±50
520
3.0±2.0
35
LT10.7MS3A10
LTCV10.7MS3
180±40
470
3.5±1.5
35
LT10.7MJA10
150±50
360
4.5±2.0
35
LT10.7MA19
≧350
950
3±2
20
LT10.7MA20
330±50
680
4±2
30
LT10.7MHY
110±30
350
7±2
30
LT10.7MFP
≤20
95
6.0 Max.
24
Dimensions[mm]
SMD Type:
DIP Type:
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

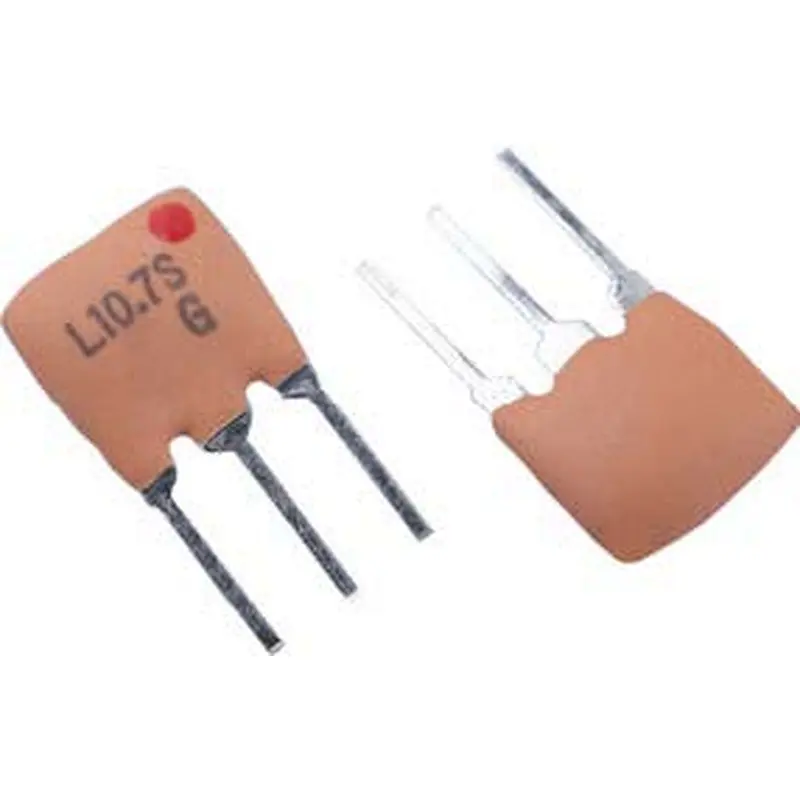

LT10.7 Ceramic Filters
