Features For ZTT SMD Ceramic Resonators

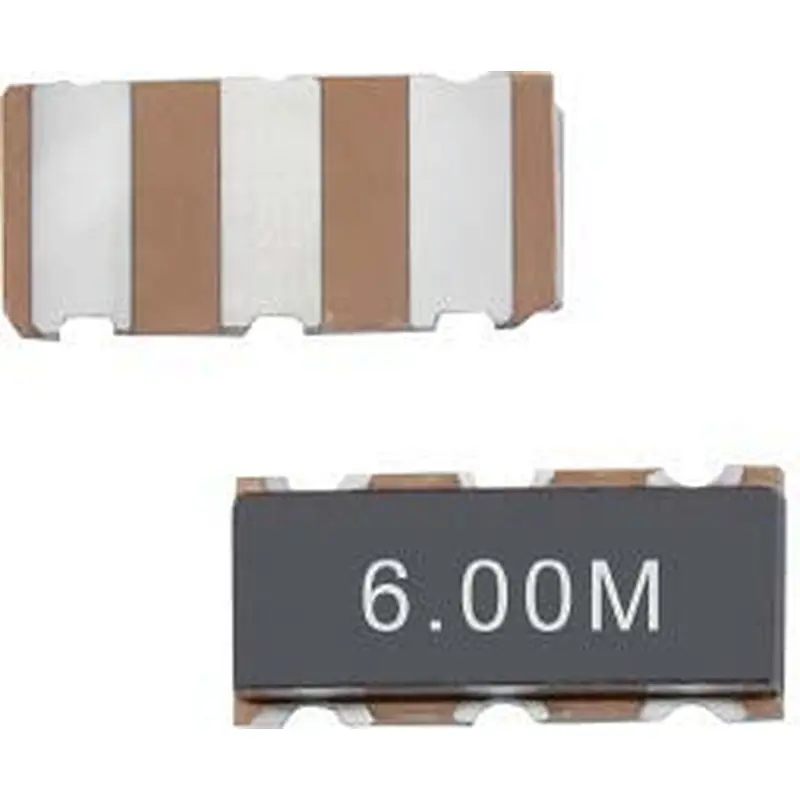

Surface mount package ceramic resonator
Frequency Range from 2MHz to 60MHz
Excellent temperature stability (±3%)
Automatic mounting and reflow soldering
Low cost
Applications: Security, Consumer device, PC, Receiver, Radio, Telecommunications, TV, etc
RoHS Compliant
Electrical Specifications For ZTT SMD Ceramic Resonators
| Part Number | Frequency Range (MHz) | Frequency Accuracy (at 25℃) | Frequency Stability | Operating Temperature | Aging For Ten Years (%) |
| ZTTCC...MG | 2.00~8.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCR...MG | 4.00~8.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCE...MG | 8.00~12.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCS...MT | 6.00~13.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCV...MT | 8.00~13.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCS...MX | 13.00~60.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCV...MX | 16.00~60.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCW...MX | 20.00~60.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCZ...MX | 24.00~45.00 | ±5% | ±3% | -25~+80℃ | ±3 |
| ZTTCP...MG | 2.00~12.00 | ±5% | ±3% | -25~+80℃ | ±3 |
Dimensions[mm]:
| Size Code | Size | |||||
| Part Number | L | W | H | P1 | P2 | T |
| ZTTCC...MG | 7.4±0.2 | 3.4±0.2 | 1.8±0.2 | 1.2±0.2 | 1.2±0.2 | 2.5±0.2 |
| ZTTCR...MG | 4.5±0.2 | 2.0±0.2 | 1.2 Max. | 0.8±0.2 | 0.8±0.2 | 1.5±0.2 |
| ZTTCE...MG | 3.2±0.2 | 1.3±0.2 | 1.0 Max. | 0.4±0.2 | 0.4±0.2 | 1.2±0.2 |
| ZTTCS...MT/MX | 4.7±0.2 | 4.1±0.2 | (1.2+A)±0.2 | 1.0±0.2 | 0.8±0.2 | 1.95±0.2 |
| ZTTCV...MT/MX | 3.7±0.2 | 3.1±0.2 | (1.0+A)±0.2 | 0.9±0.2 | 0.7±0.2 | 1.0±0.2 |
| ZTTCW...MX | 2.5±0.2 | 2.0±0.2 | 1.2 Max. | 0.5±0.2 | 0.4±0.2 | 1.0±0.2 |
| ZTTCZ...MX | 2.2±0.2 | 1.8±0.2 | 1.2 Max. | 0.4±0.2 | 0.5±0.2 | 0.85±0.2 |
| ZTTCP...MG | 6.0±0.2 | 3.0±0.2 | 1.8±0.2 | 1.2±0.2 | 1.2±0.2 | 2.5±0.2 |
Note: A stands for thickness of the ceramic element, which varies with the frequency. The range of the thickness diference is 0.1 to 0.7mm.
No middle terminal for ZTA series.
