Electrical Specifications For ZTT Series Ceramic Resonators:
Part Number
Frequency Range (MHz)
Frequency Accuracy (at 25℃)
Frequency Stability
Operating Temperature
Aging For Ten Year (%)
ZTT...MG
1.79~6.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTTWS...MG
1.79~6.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTTLS...MG
3.00~8.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTTRS...MG
3.00~10.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTT...MT
6.00~13.00
±0.5%
±0.3%
-25~+85℃
±0.3
ZTT...MX
12.00~60.00
±0.5%
±0.3%
-25~+85℃
±0.3
Dimensions[mm]:
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

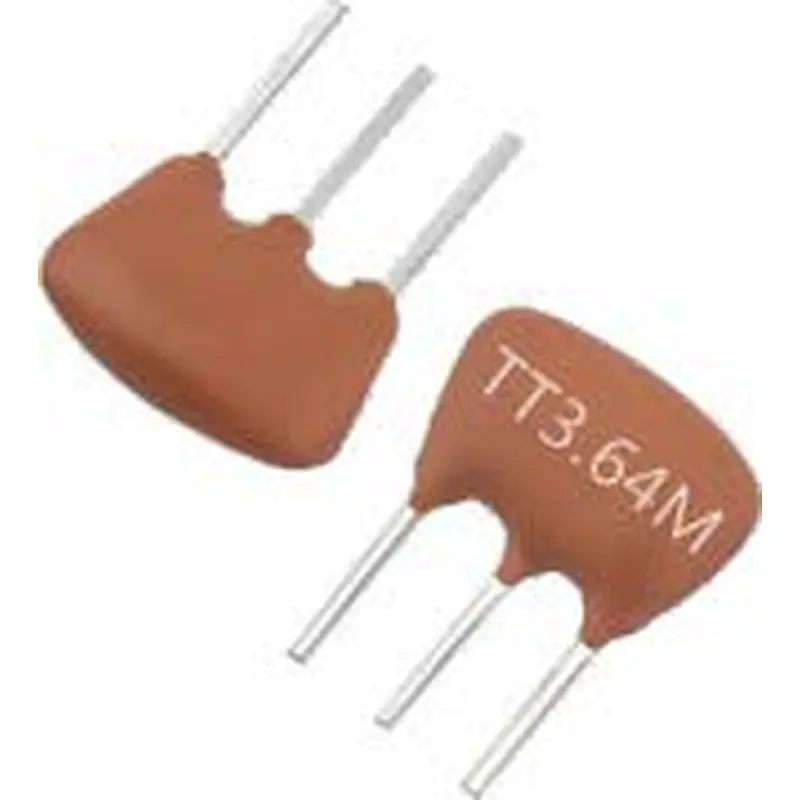

ZTT Series-DIP
ZTT Series-DIP
0.00~0.00
ZTT Series-DIP Model: ZTT Series For DIP Type Frequency range: 1.79~60MHz Size: 10×7.5×4.0 mm Applications: Security, Consumer device, TV, Radio, PC, etc
