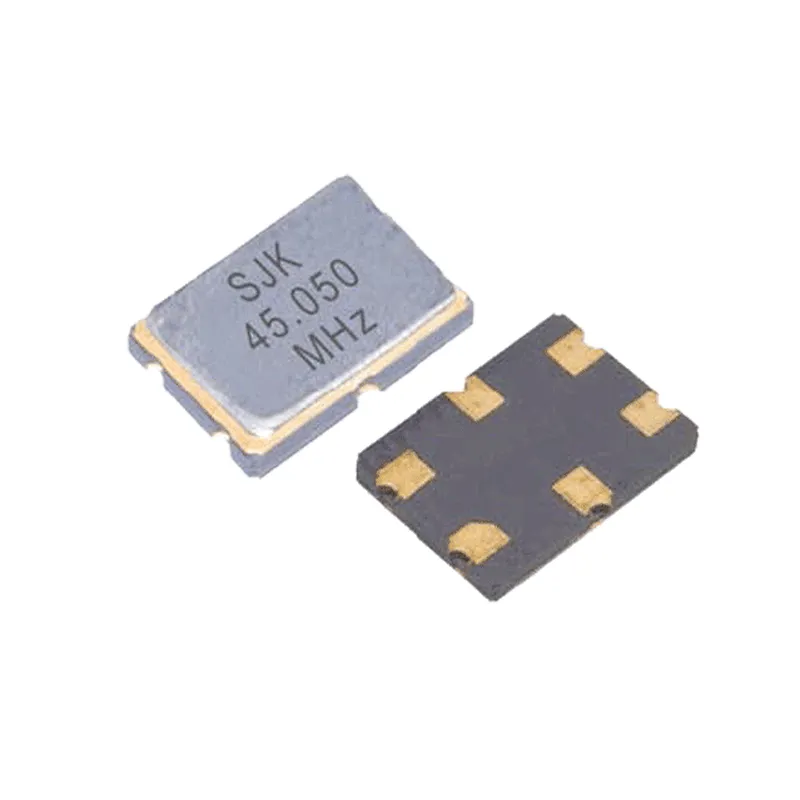

Features Of CF Series 2Pole SMD 7050 Monolithic Crystal Filter
Typical 7.0×5.0×1.3mm, light weight and miniature SMD monolithic crystal filter
2Pole function in a single package
Excellent guaranteed attenuation
Excellent shock and vibration resistance
Automatic mounting and reflow soldering
Applications: Radio communications, Mobile communications, Cordless phones, Cellular, Wireless communications, etc
RoHS Compliant /Pb-Free
Electrical Specification Of CF Series 2Pole SMD 7050 Monolithic Crystal Filter
| Item/Type | CF Series (2Pole SMD 7050 Monolithic Crystal Filters) |
| Nominal Frequency | 21.400MHz | 21.700MHz | 45.000MHz | 45.000MHz |
| Pole | 2 | 2 | 2 | 2 |
| Overtone Order | Fundamental | Fundamental | Fundamental | Fundamental |
| Pass Bandwidth | ±7.5KHz min./3dB | ±7.5KHz min./3dB | ±15KHz min./3dB | ±15KHz min./3dB |
| Stop Bandwidth | ±50KHz min./15dB | ±28KHz min./18dB | ±25KHz min./18dB | ±60KHz min./15dB |
| Ripple | 1.5dB | 0.5dB | 1.0dB | 1.0dB |
| Insertion Loss | 2.0dB max. | 1.5dB max. | 2.0dB max. | 2.0dB max. |
| Guaranteed Attenuation | 70dB min. | 70dB min. | 70dB min. | 70dB min. |
| Terminating Impedance | 1500Ω//2.5pF | 1500Ω//2.5pF | 560Ω//6.0pF | 1200Ω//1.8pF |
| Operating Temperature | -20~+70℃, or specify |
| Packing Unit | 1000pcs./reel |
Dimensions[mm]
