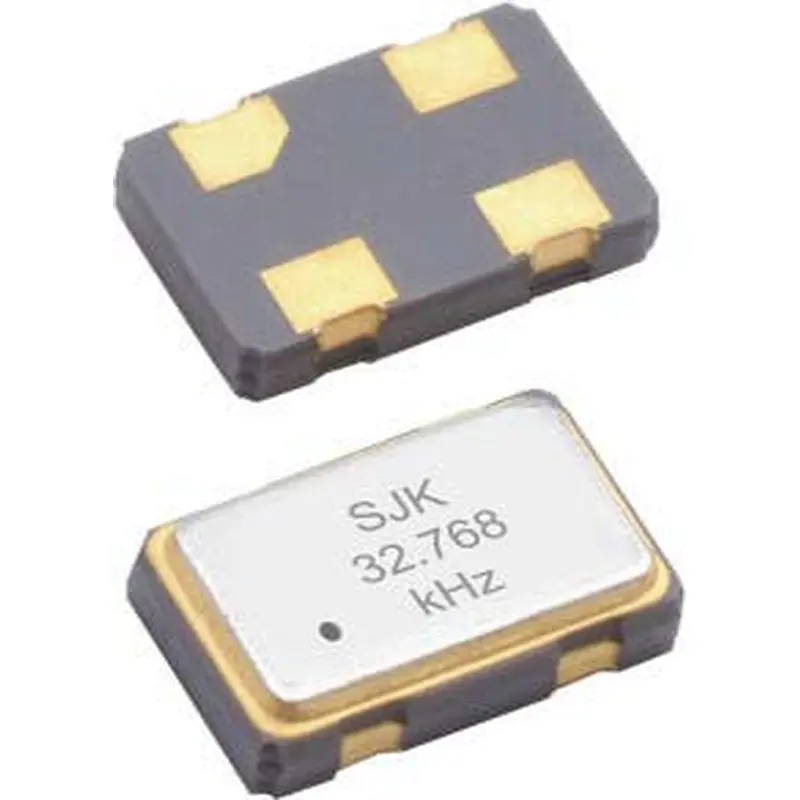

Features Of 5B Series 32.768kHz SMD 5032 Crystal Oscillator
Typical 5.0×3.2×1.2mm ceramic SMD package 32.768kHz crystal oscillator
Operation voltage: 1.8V, 2.5V, 3.3V
Built-in ASIC enables reduction of current consumption
3-state function available
Automatic mounting and reflow soldering
Use AT crystal as the resonator for good temperature performance
Applications: Real time clock application, Car navigation system, HDTV, DSC, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 5B Series 32.768kHz SMD 5032 Crystal Oscillator
| Item /Type | 5B Series (32.768kHz SMD 5032 Crystal Oscillator) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Nominal Frequency | 32.768kHz |
| Supply Voltage | 1.8V, 2.5V, 3.3V |
| Supply Current | 100μA Max. |
| Frequency Stability | ±25ppm~±100ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc /0.9Vcc |
| Rise (Tr) /Fall (Tf) Time | 12ns Max. |
| Duty Cycle | 45~55% |
| Start-up Time | 5ms Max. |
| 3-State Voltage Vol (Max.) /Voh (Min.) | 0.3Vcc /0.7Vcc |
| Aging (at 25℃) | ±3ppm/Year Max. |
| Packing Unit | 1000pcs./Reel |
Dimensions[mm]
