Features Of 3C Series 32.768kHz SMD 3225 Crystal Oscillator

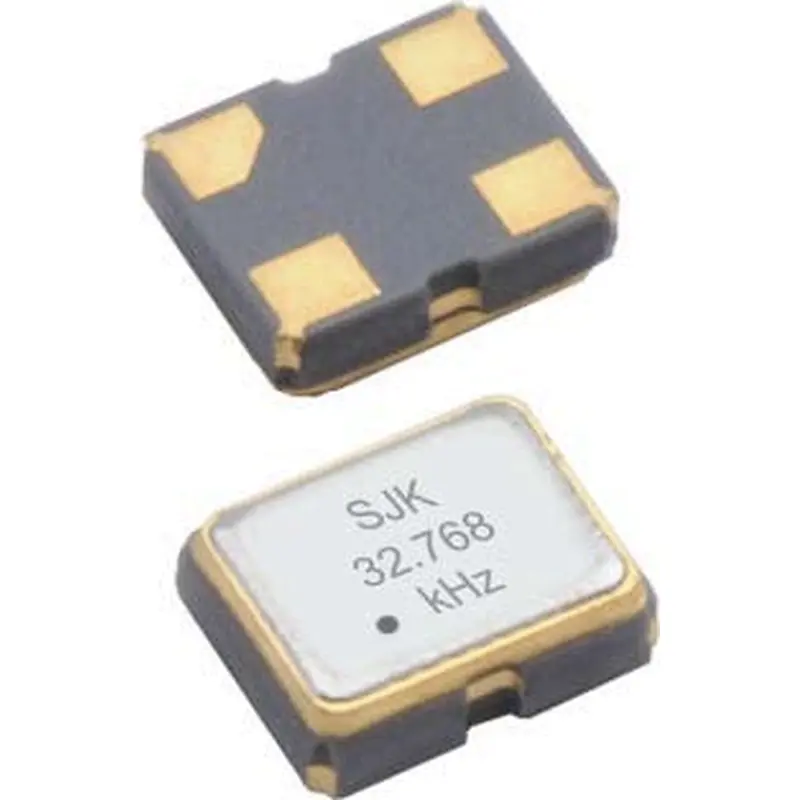

3225 size, 0.95mm high, 32.768kHz SMD crystal oscillator
Operation voltage: 1.8V, 2.5V, 3.3V
Built-in ASIC enables reduction of current consumption
3-state function available
Automatic mounting and reflow soldering
Application: Real time clock application, DSC, Set-top Box, HDTV, GPS, Mobile phone, etc
RoHS Compliant /Pb Free
Electrical Specifications Of 3C Series 32.768kHz SMD 3225 Crystal Oscillator
| Item /Type | 2D Series (32.768kHz SMD 2520 Crystal Oscillator) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Nominal Frequency | 32.768kHz |
| Supply Voltage | 1.8V, 2.5V, 3.3V |
| Supply Current | 70mA Max. |
| Frequency Stability | ±20ppm~±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc /0.9Vcc |
| Rise (Tr) /Fall (Tf) Time | 50ns Max. |
| Start-up Time | 2ms Max. |
| Duty Cycle | 45~55% |
| 3-state Voltage Vol (Max.) /Voh (Min.) | 0.3Vcc /0.7Vcc |
| Aging (at 25℃) | ±3ppm/Year Max. |
| Packing Unit | 3000pcs./Reel |
Dimensions[mm]
