Features Of 2X Series 14-Pin Full-size OCXO
OCXO (Oven Controlled Crystal Oscillator)

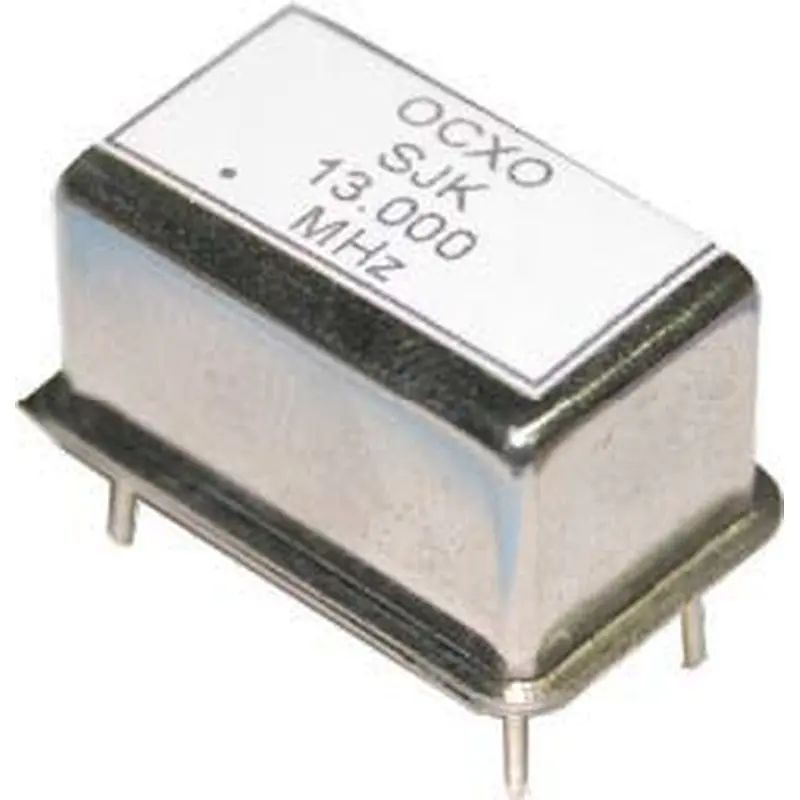

Typical 20.3×12.7×11mm 14-Pin Full-size Thru-hole OCXO
Frequency range from 5MHz to 40MHz
±50ppb frequency stability over -40~+85℃
Stratum 3 (Overall ±4.6ppm including 10 years aging)
Very fast warm-up and accurate stability
Applications: Base station, Digital switch, Test equipment, Measurin equipment, SDH, SONET, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 2X Series 14-Pin Full-size OCXO
| Item /Type | 2X Series (14 Pin Full-size OCXO) | ||
| Output Type | HCMOS | ||
| Output Load | 15pF, or specify | ||
| Output Wave Form | Rectangular | ||
| Supply Voltage | 3.3V | 5.0V | |
| Frequency Range | 10MHz (5~40MHz) | ||
| Operating Temperature | -20~+70℃, or spcify | ||
| Frequency Stability | Frequency Tolerance | ±0.1ppm Max. | |
| vs. Operating Temperature | ±50ppb~±200ppb | ||
| vs. Supply Voltage | ±50ppb Max. (±5 Change) | ||
| vs. Load | ±50ppb Max. (±10 Change) | ||
| vs Aging | ±5.0ppb /Daily, ±0.5ppm/Year, ±3.0ppm/10 years | ||
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc/0.9Vcc | ||
| Duty Cycle | 45~55% | ||
| Spurious | -60dBc | ||
| Warm-up | ±0.1ppm (In 2 minutes @+25, referenced to 1 hour) | ||
| Power Consumption (Steady state) | 0.8W Max. | ||
| Frequency Adjustment Range | ±5.0ppm (+1.65V±1.65V/+2.5V±2.5V) | ||
| Phase Noise @20MHz | @10Hz | -105dBc/Hz | |
| @100Hz | -130dBc/Hz | ||
| @1KHz | -140dBc/Hz | ||
| @10KHz | -150dBc/Hz | ||
| Packing Unit | 200pcs. | ||
Dimensions[mm]
