Applications: Base station, Digital switch, Test equipment, Measurin equipment, Synthesizer, etc
RoHS Compliant /Pb-Free

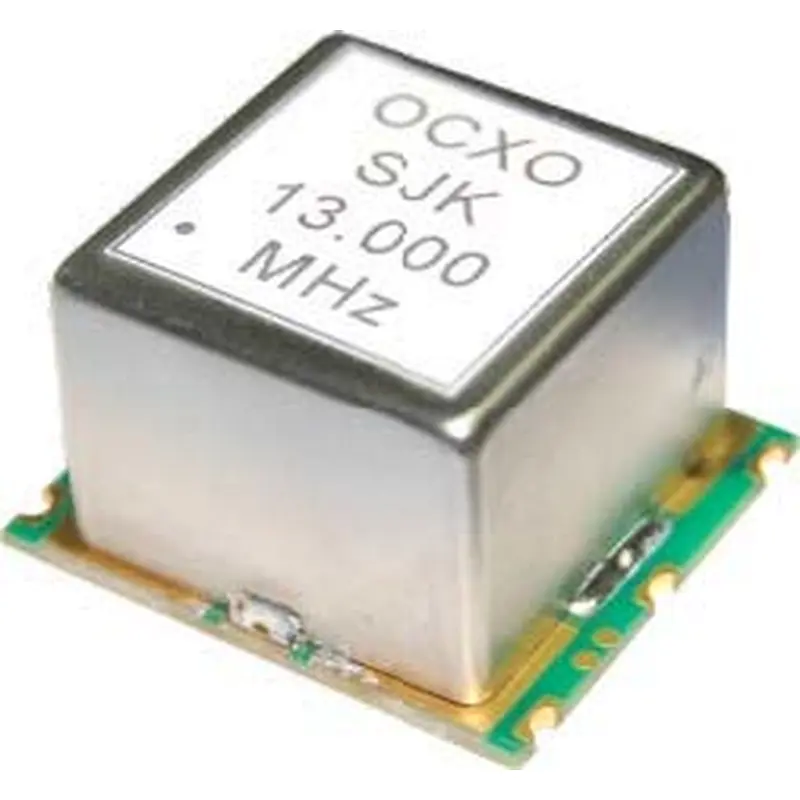

Electrical Specifications Of 5X Series SMD OCXO
Item /Type
5X Series (SMD OCXO)
Output Type
HCMOS
Output Load
15pF, or specify
Output Wave Form
Rectangular
Supply Voltage
3.3V
5.0V
Frequency Range
10MHz (5~40MHz)
Operating Temperature
-40~+85℃, or spcify
Frequency Stability
Frequency Tolerance
±10ppb Max.
vs. Operating Temperature
±5ppb~±20ppb
vs. Supply Voltage
±0.5ppb Max. (±5 Change)
vs. Load
±0.5ppb Max. (±10 Change)
vs Aging
±0.5ppb /Daily, ±50ppb/Year, ±0.4ppm/10 years, Max.
Voltage Vol (Max.) /Voh (Min.)
0.1Vcc/0.9Vcc
Duty Cycle
45~55%
Spurious
-60dBc
Warm-up
±0.1ppm (In 5 minutes @+25, referenced to 1hour)
Power Consumption (Steady state)
1.2W Max.
Frequency Adjustment Range
±0.5ppm (+1.65V±1.65V/+2.5V±2.5V)
Phase Noise @20MHz
@10Hz
-115dBc/Hz
@100Hz
-130dBc/Hz
@1KHz
-140dBc/Hz
@10KHz
-150dBc/Hz
Packing Unit
200pcs./Reel
Dimensions[mm]
