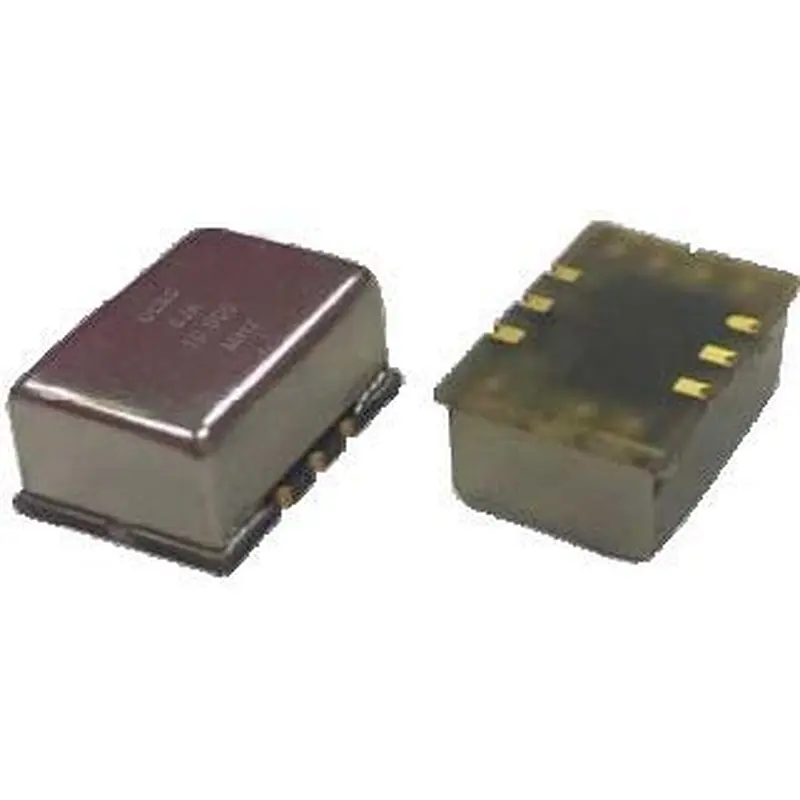

Features Of 9X Series SMD OCXO
OCXO (Oven Controlled Crystal Oscillator)
Typical 14.3×9.3×6.5mm SMD OCXO
Frequency range from 5MHz to 40MHz
±30ppb frequency stability over -40~+85℃
Stratum 3(Overall ±4.6ppm including 20 years aging)
Automatic mounting and reflow soldering
Very fast warm-up and accurate stability
SC-Cut crystal unit
Applications: Base station, Digital switch, Reference Timing Ciruct, Measurin equipment, Synthesizer, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 9X Series SMD OCXO
| Item /Type | 9X Series (SMD OCXO) | ||
| Output Type | HCMOS | ||
| Output Load | 15pF, or specify | ||
| Output Wave Form | Rectangular | ||
| Supply Voltage | 3.3V | 5.0V | |
| Frequency Range | 20MHz (5~40MHz) | ||
| Operating Temperature | -40~+85℃, or spcify | ||
| Frequency Stability | Frequency Tolerance | ±30ppb Max. | |
| vs. Operating Temperature | ±10ppb~±50ppb | ||
| vs. Supply Voltage | ±5ppb Max. (±5 Change) | ||
| vs. Load | ±10ppb Max. (±10 Change) | ||
| vs Aging | ±2.0ppb /Daily, ±0.4ppm/Year, ±2.0ppm/10 years, Max. | ||
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc/0.9Vcc | ||
| Duty Cycle | 45~55% | ||
| Spurious | -60dBc | ||
| Warm-up | ±0.1ppm (In 5 minutes @+25, referenced to 1hour) | ||
| Power Consumption (Steady state) | 0.6W Max. | ||
| Frequency Adjustment Range | ±5ppm (+1.65V±1.65V/+2.5V±2.5V) | ||
| Phase Noise @20MHz | @10Hz | -98dBc/Hz | |
| @100Hz | -126dBc/Hz | ||
| @1KHz | -145dBc/Hz | ||
| @10KHz | -152dBc/Hz | ||
| Packing Unit | 500pcs./Reel | ||
Dimensions[mm]
