Applications: Large-scale equipment, Base station, WLAN, WiMAX, Test equipment, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 9T Series SMD TCXO/VCTCXO
Item /Type
9T Series (SMD VCTCXO/TCXO)
Output Type
Clipped Sine wave
CMOS
Output Load
10KΩ//10pF
15pF, or specify
Frequency Range
5~40MHz
Supply Voltage
3.3V /5.0V
Supply Current
3.5mA Max.
6mA Max.
Output Level
0.8Vp-p Min.
0.1Vcc/0.9Vcc
Frequency Stability
Tolerance
±2.0ppm Max. (after 2 reflows)
vs Temperature
±0.05ppm~±0.5ppm
vs Supply Voltage (Vcc±5%)
±0.2ppm Max.
vs Load (Load varies±10%)
±0.2ppm Max.
vs Aging
±1.0ppm Max.
Auto Frequency Control (AFC) Range (VCTCXO)
±5ppm~±10ppm (1.5±1V)
Strart-up Time
2ms Max.
Operature Temperature
-40~+85℃, or specify
Duty Cycle
45~55%
Phase Noise @10MHz
100KHz
-120dBc/Hz
1KHz
-140dBc/Hz
10KHz
-148dBc/Hz
Packing Unit
200pcs./Reel
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link
9T Series SMD TCXO/VC-TCXO
9T Series SMD TCXO/VC-TCXO
0.00~0.00

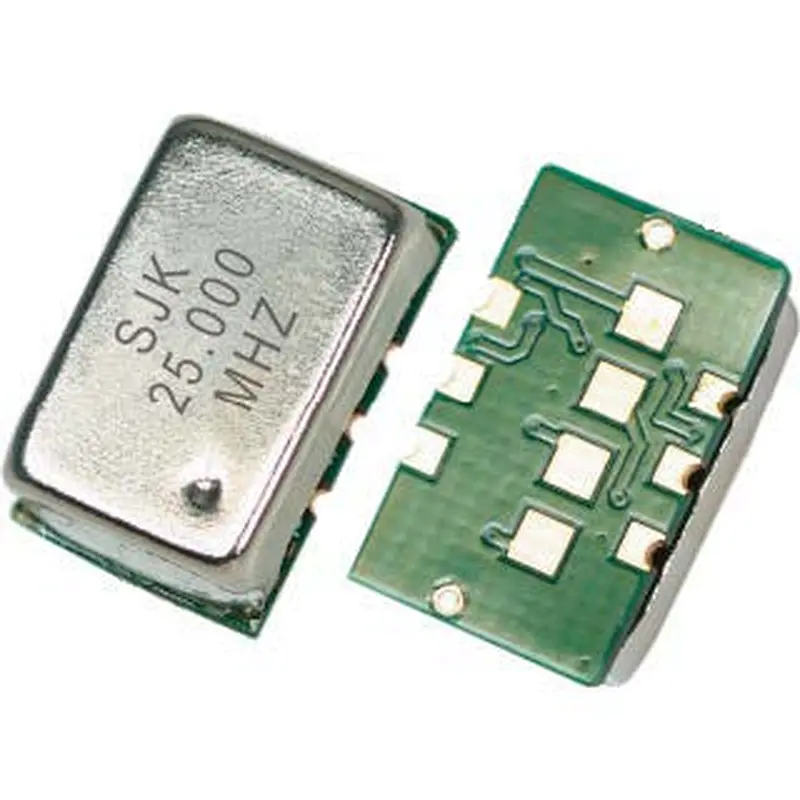

9T Series SMD TCXO/VC-TCXO Model: 9T Series (SMD TCXO/VC-TCXO) Frequency range: 5~40MHz Supply voltage: 3.3V/5.0V Frequency stability: ±0.05ppm~±0.5ppm Size: 14.3×8.7×4.9 mm Applications: Base station, WLAN, WiMAX, Large-scale equipment, etc
