Features Of 7Q Series SMD 2520 TCXO /VC-TCXO
Output frequency range from 10MHz to 52MHz
2520size, 0.80mm high SMD TCXO /VC-TCXO
Low voltage operatios and low phase noise
Temperature stability: ±0.5ppm~±2.5ppm
VCTCXO available
Automatic mounting and reflow soldering
Applications: Mobile phone, Wearable electronics, IoT, GPS, WLAN, and more
RoHS Compliant /Pb-Free
Electrical Specifications Of 7Q Series SMD 2520 TCXO /VC-TCXO
| Item /Type | 7Q (SMD 2520 TCXO /VC-TCXO) |
| Output Type | Clipped Sine wave |
| Output Load | 10KΩ//10pF |
| Supply Voltage | 1.8~3.3V |
| Frequency Range | 10~52MHz |
| Supply Current | 2.0mA Max. |
| Output Level | 0.8Vp-p Min. |
| Frequency Stability | Tolerance | ±2.0ppm Max. (after 2 reflows ) |
| vs Temperature | ±0.5ppm~±2.5ppm |
| vs Supply Voltage | ±0.2ppm Max. (Vcc±5%) | ±0.2ppm Max. (Vcc±5%) |
| vs Load | ±0.2ppm Max. (Load varies±10%) |
| vs Aging | ±1.0ppm Max./Year |
| Auto Frequency Control (AFC) Range | ±5ppm~±10ppm (1.4±1V) |
| Start-up Time | 2ms Max. |
| Operating Temperature | -30~+85℃ |
| Phase Noise @ 19.2MHz | 100Hz | -115dBc/Hz |
| 1KHz | -135dBc/Hz |
| 10KHz | -148dBc/Hz |
| Packing Unit | 3000pcs./Reel |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X

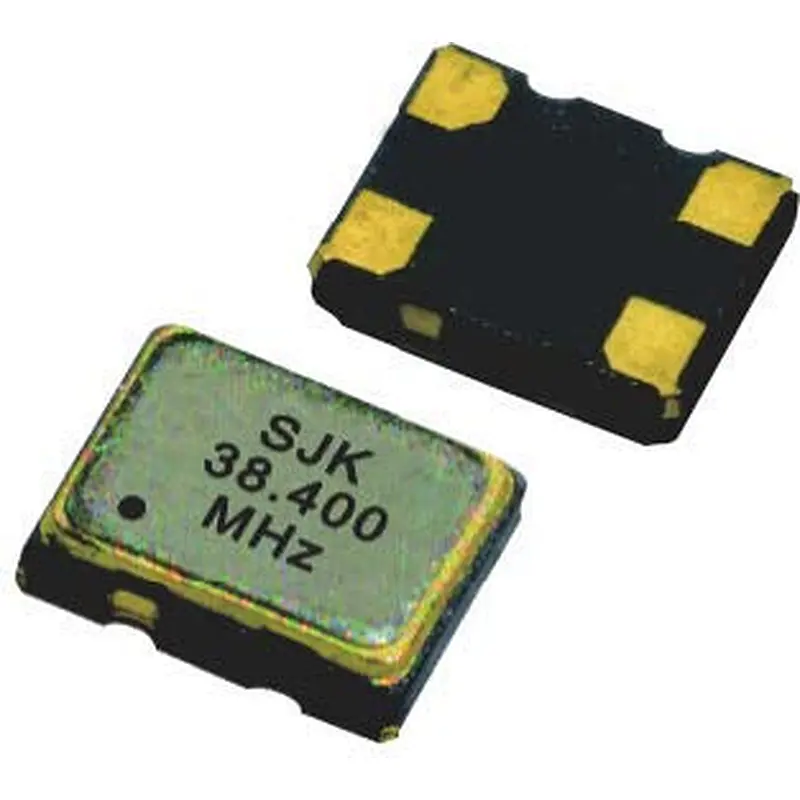

7Q Series SMD 2520 TCXO/VCTCXO
