Applications: Mobile phone, Wearable electronics, IoT, GPS, WLAN, and more
RoHS Compliant /Pb-Free
Electrical Specifications Of 7X Series SMD 2016 TCXO /VC-TCXO
Item /Type
7X (SMD 2016 TCXO /VC-TCXO)
Output Type
Clipped Sine wave
Output Load
10KΩ//10pF
Supply Voltage
1.8~3.3V
Frequency Range
10~52MHz
Supply Current
2.0mA Max.
Output Level
0.8Vp-p Min.
Frequency Stability
Tolerance
±2.0ppm Max. (after 2 reflows )
vs Temperature
±0.5ppm~±2.0ppm
vs Supply Voltage
±0.2ppm Max. (Vcc±5%)
±0.2ppm Max. (Vcc±5%)
vs Load
±0.2ppm Max. (Load varies±10%)
vs Aging
±1.0ppm Max./Year
Auto Frequency Control (AFC) Range
±7ppm~±16ppm (1.4±1V)
Start-up Time
2ms Max.
Operating Temperature
-30~+85℃
Phase Noise @19.2MHz
100Hz
-115dBc/Hz
1KHz
-135dBc/Hz
10KHz
-148dBc/Hz
Packing Unit
3000pcs./Reel
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

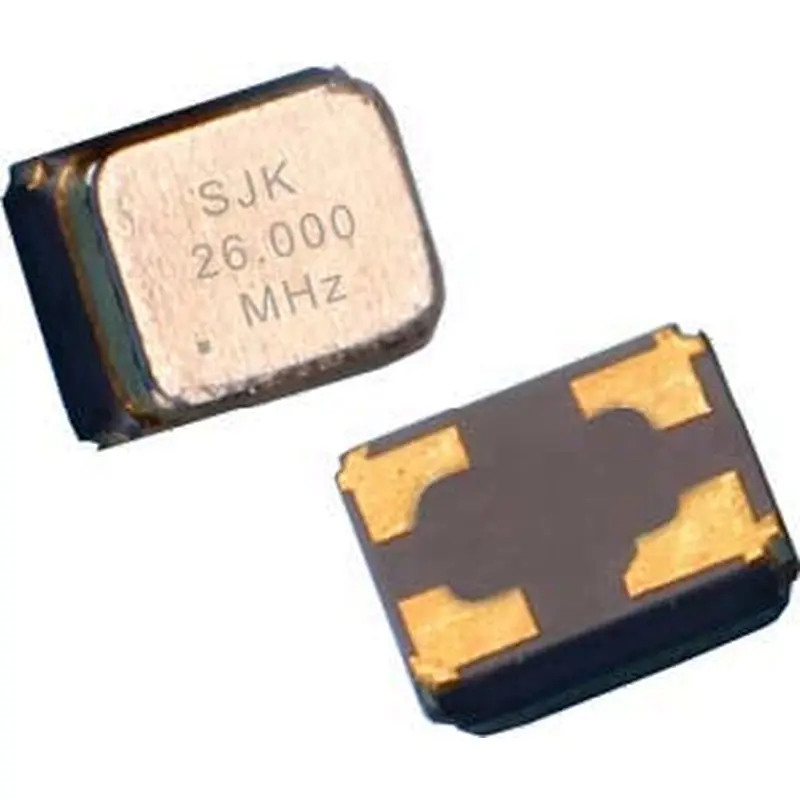

7X Series SMD 2016 TCXO
7X Series SMD 2016 TCXO
0.00~0.00
7X Series SMD 2016 TCXO Model: 7X Series SMD 2016 TCXO /VC-TCXO Frequency range: 10~52MHz Supply voltage: 1.8V~3.3V Frequency stability: ±0.5~±2.0ppm Size: 2.0×1.6×0.75mm Applications: GPS, Mobile phone, Wearable electronics, IoT, and more
