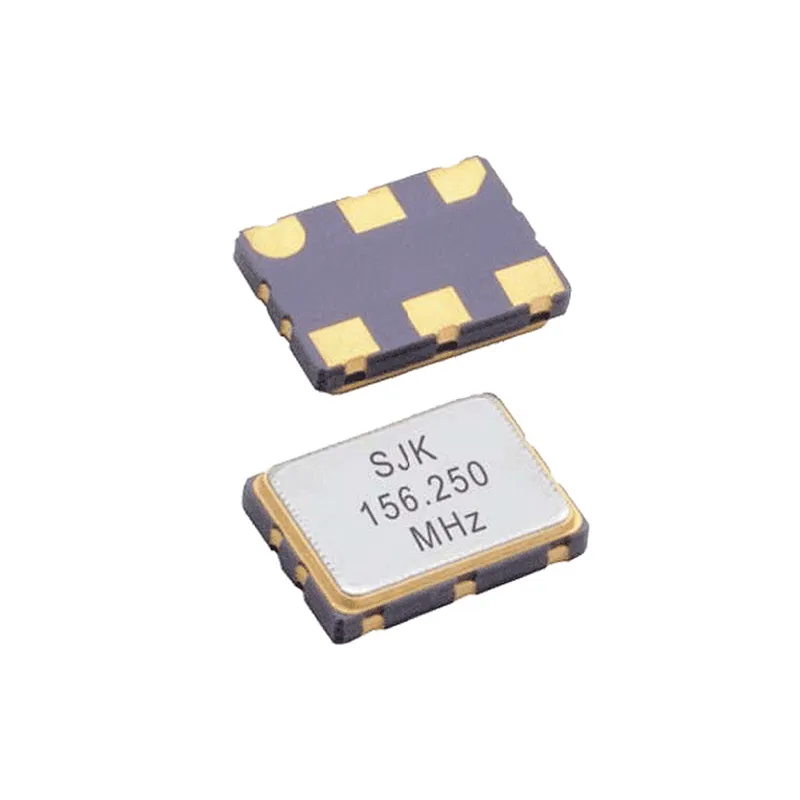

Features of 6S Series SMD 7050 VCXO
Voltage Controlled Crystal Oscillator (VCXO)
7050 size, 1.3mm hign, SMD 7050 VCXO
CMOS output, output frequency range from 1MHz to 200MHz
Excellent low phase noise and jitter
3-state function available
Automatic mounting and reflow soldering
Applications: Base station, Server, Commnunications, Ethernet, SONET, Femtocell, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6S Series SMD 7050 VCXO
| Item /Type | 6S Series (SMD 7050 VCXO) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V |
| Frequency Range | 1~200MHz |
| Supply Current | 60mA Max. |
| Frequency Stability | ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vcc /0.9Vcc |
| Rise (Tr) /Fall (Tf) Time | 5ns Max. |
| Start-up Time | 10ms Max. |
| Duty Cycle | 45~55% |
| Absolute Pulling Range (APR)* | ±50ppm Min., or specify |
| Nominal Control Range | 0.5 Vcc |
| Control Voltage Range | 0~Vcc |
| Lineartiy | 10% Max. |
| Phase Jitter (12KHz~20MHz) | 1pS Max. |
| Packing Unit | 1000pcs./Reel |
