Features Of 6MF Series 14-Pin Full-Size Crystal Oscillator
All metal welded package
High precision characteristic cover up to wide frequency range from 0.25MHz to 180MHz
3.3V /5.0V operating voltage
CMOS output
3-state function
14-Pin thru-hole package (Full-size)
Low phase noise and jitter
Applications: Test equipment, Electronic instruments, Telecommunications, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 6MF Series 14-Pin Full-Size Crystal Oscillator
| Item /Type | 6MF Series (14-Pin Full-size Crystal Oscillator) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 3.3V /5.0V |
| Frequency Range | 0.25~180MHz |
| Frequency Stability | ±20ppm, ±25ppm, or specify |
| Supply Current | 50mA Max. |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperatuer | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
| Rise (Tr) /Fall (Tf) Time | 10ns Max. |
| Period Jitter | 40 pSec Max. |
| Duty Cycle | 40~60% |
| Start-up Time | 10ms Max. |
| Phase Jitter (12KHz~20MHz) | 1ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 100pcs. |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X

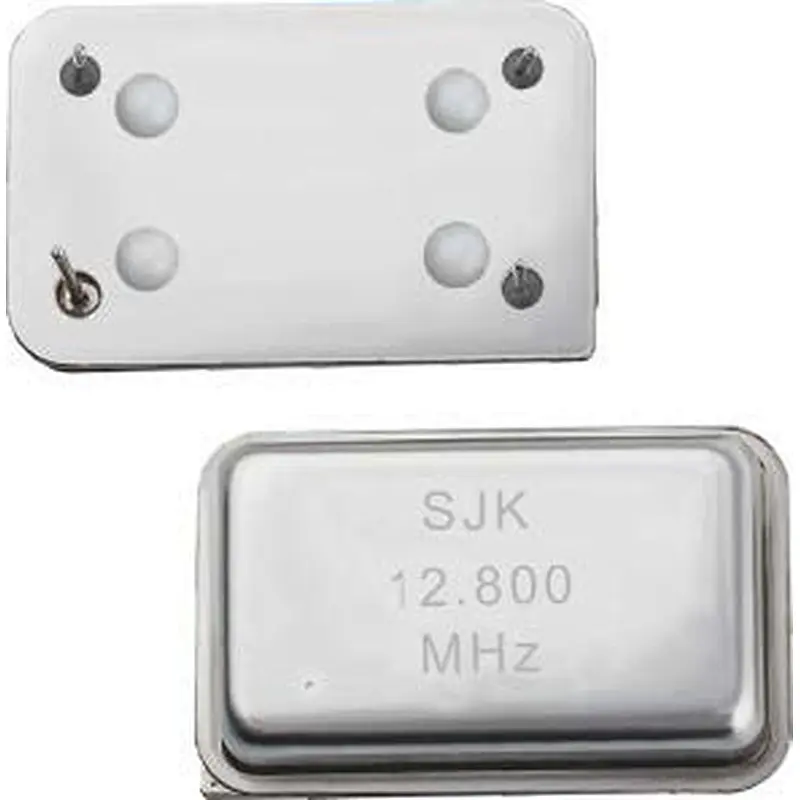

6MF Full-size Crystal Oscillator
