Features Of 9N Series SMD 1490 Crystal Oscillator
Surface mount package, size with 14×9×5.4mm
High precision characteristic cover up to wide frequency range from 1MHz to 170MHz
Either fundamental and 3rd overtone solution
CMOS output
3-state function
Automatic mounting and reflow soldering
Applications: PCI-Express, Gigabyte Ethernet, SDH, Fiber channel, ATA, SCSI, etc
RoHS Compliant /Pb-Free
Electrical Specifications Of 9N Series SMD 1490 Crystal Oscillator
| Item /Type | 9N Series (SMD 1490 Crystal Oscillator) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 1.8~5.0V |
| Frequency Range | 1~170MHz |
| Frequency Stability | ±20ppm, ±25ppm, or specify |
| Supply Current | 50mA Max. |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperatuer | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
| Rise (Tr) /Fall (Tf) Time | 10ns Max. |
| Period Jitter | 40 pSec Max. |
| Duty Cycle | 40~60% |
| Start-up Time | 10ms Max. |
| Phase Jitter (12KHz~20MHz) | 1ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 1000pcs./Reel |
Dimensions[mm]
Wechat scan code or copy link mobile phone open
X

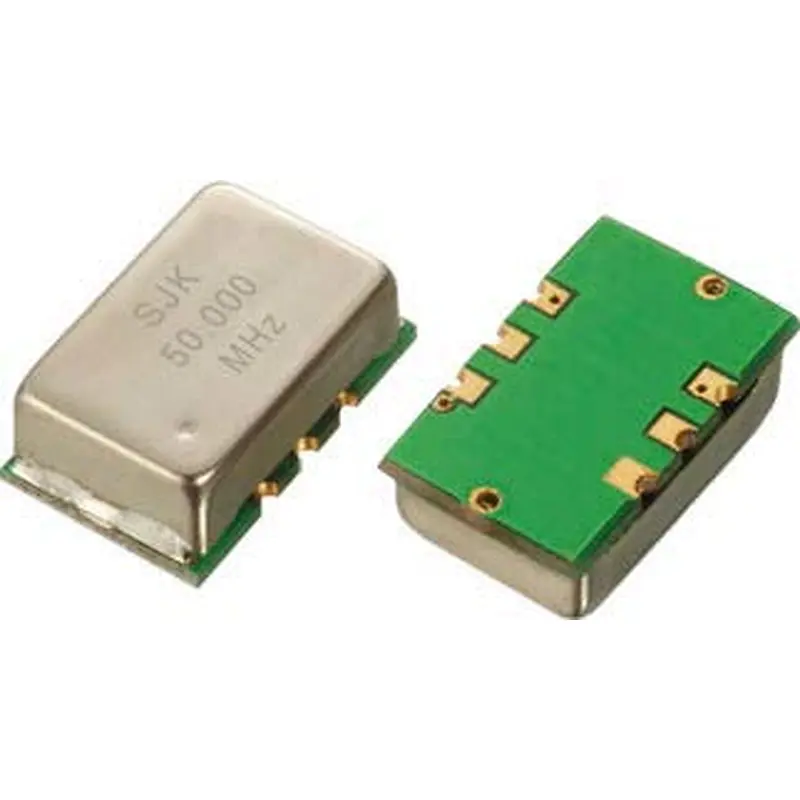

9N SMD 1490 Crystal Oscillator
