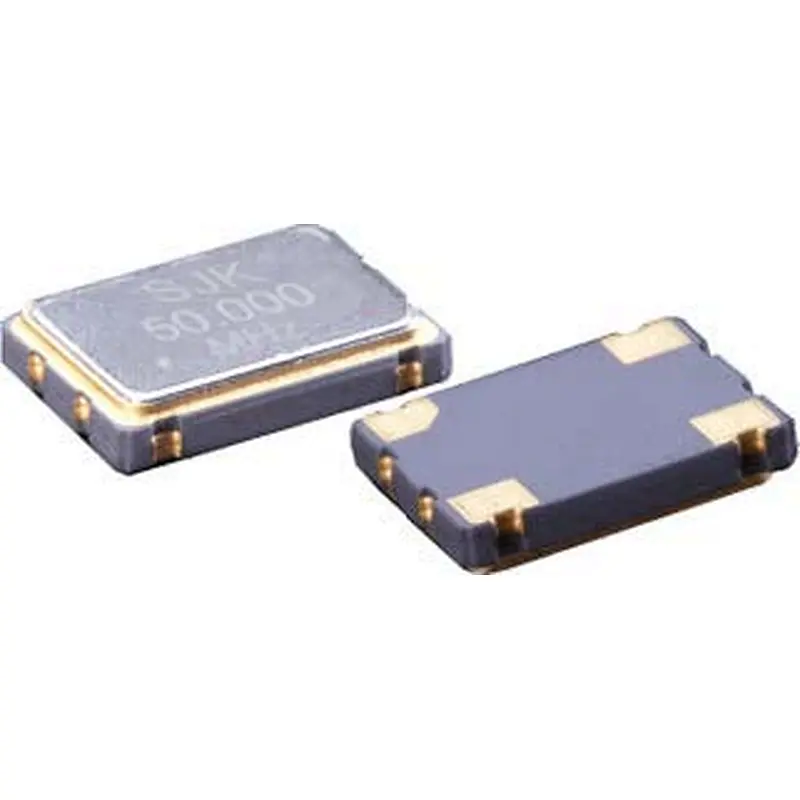

Features Of 6N Series SMD 7050 Crystal Oscillators
Package size: 7.0×5.0×1.3mm.
Small size SMD seam sealed clock crystal oscillator units
Supply voltage: 1.8~5.0V
Wide frequency range: 1~170MHz
3-state function
Automatic mounting and reflow soldering
High stability, low jitter, low power consumption.
Applications: PC, Peripherals, Car applications, Visual, Ethernet, Sever, FA equipment, FC-HBA, LCDM, etc
RoHS Compliant /Pb-Free
Electrical Specification Of 6N Series SMD 7050 Crystal Oscillators
| Item /Type | 6N Series (SMD 7050 Crystal Oscillator) |
| Output Type | CMOS |
| Output Load | 15pF, or specify |
| Supply Voltage | 1.8~5.0V |
| Frequency Range | 1~170MHz |
| Supply Current | 20mA Max. |
| Frequency Stability | ±20ppm, ±25ppm, ±50ppm, or specify |
| Operating Temperature | -40~+85℃, or specify |
| Storage Temperature | -55~+125℃ |
| Voltage Vol (Max.) /Voh (Min.) | 0.1Vdd /0.9Vdd |
| Rise (Tr) /Fall (Tf) Time | 8ns Max. |
| Period Jitter | 40 pSec Max. |
| Duty Cycle | 40~60% |
| Start-up Time | 5ms Max. |
| Phase Jitter (12KHz~20MHz) | 1 ps Max. |
| Aging (at 25℃) | ±3ppm /Year Max. |
| Packing Unit | 1000pcs./Reel |
Dimensions[mm]
