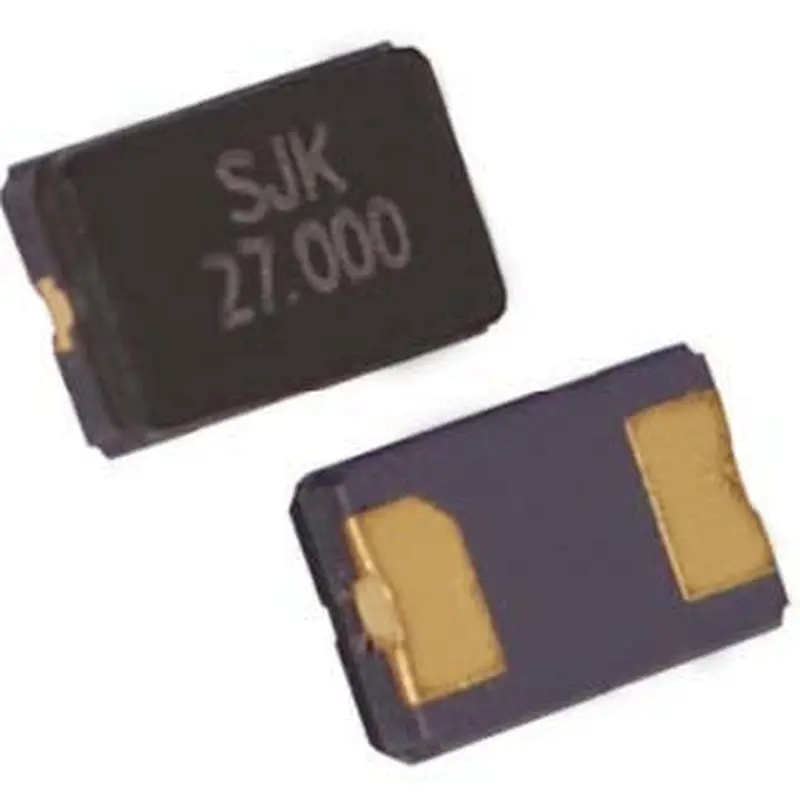

Features Of 6I Series SMD 5032 Glass Sealed Crystal Units
5032 size miniature SMD crystal unit with a low profile of 1.2mm
Wide frequency range from 8MHz to 64MHz
Excellent heat resistance and environmental characteristics
High precision and high reliability
Automatic mounting and reflow soldering
Reasonable cost and good delivery performance
Applications: Automotive applications, GPS, PDA, PC, DSC, USB interface card, Multiplayer, AV equipment, etc
Electrical Specifications Of 6I Series SMD 5032 Glass Sealed Crystal Units
Item /Type
6I Series (SMD 5032 Glass Sealed Crystal Units)
Frequency Range
8~10MHz
10~12MHz
12~40MHz
40~64MHz
Overtone Order
Fundamental
Load Capacitance
10pF, 16pF, 20pF, or specify
Drive Level
1~200μW Max. (100μW Typ.)
Frequency Tolerance
±30ppm, or specify
Series Resistance
150Ω Max.
100Ω Max.
50Ω Max.
100Ω Max.
Shunt Capacitance
5pF Max.
Operating Temperature
-20~+70℃, or specify
Storage Temperature
-40~+85℃
Aging (at 25)
±3ppm /year Max.
Packing Unit
1000pcs./Reel
Dimensions[mm]
