Features Of 7Z Series SMD 2520 Glass Sealed Crystal Units
3225 size miniature and lightweight SMD crystal unit with a low profile of 0.8mm
Wide frequency range from 8MHz up to 64MHz
Excellent heat resistance and environmental characteristics
High precision and high reliability
Automatic mounting and reflow soldering
Applications: DVC, Automotive applications, Wireless communications, PC, Mobile phone, etc
RoH Compliant
Electrical Specifications Of 7V Series SMD 2520 Glass Sealed Crystal Units
Item /Type
7V Series (SMD 2520 Glass Sealed Crystal Units)
Frequency Range
8~10MHz
10~12MHz
12~20MHz
20~27MHz
27~64MHz
Overtone Order
Fundamental
Load Capacitance
8pF, 10pF, or specify
Drive Level
1~50μW Max. (10μW Typ.)
Frequency Tolerance
±10ppm, ±20ppm, ±30ppm, or specify
Series Resistance
400Ω Max.
100Ω Max.
80Ω Max.
60Ω Max.
50Ω Max.
Shunt Capacitance
5pF Max.
Operating Temperature
-20~+70℃, -40~+85℃, or specify
Storage Temperature
-40~+85℃
Aging (at 25℃)
±3ppm /Year Max.
Packing Unit
3000pcs./Reel
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

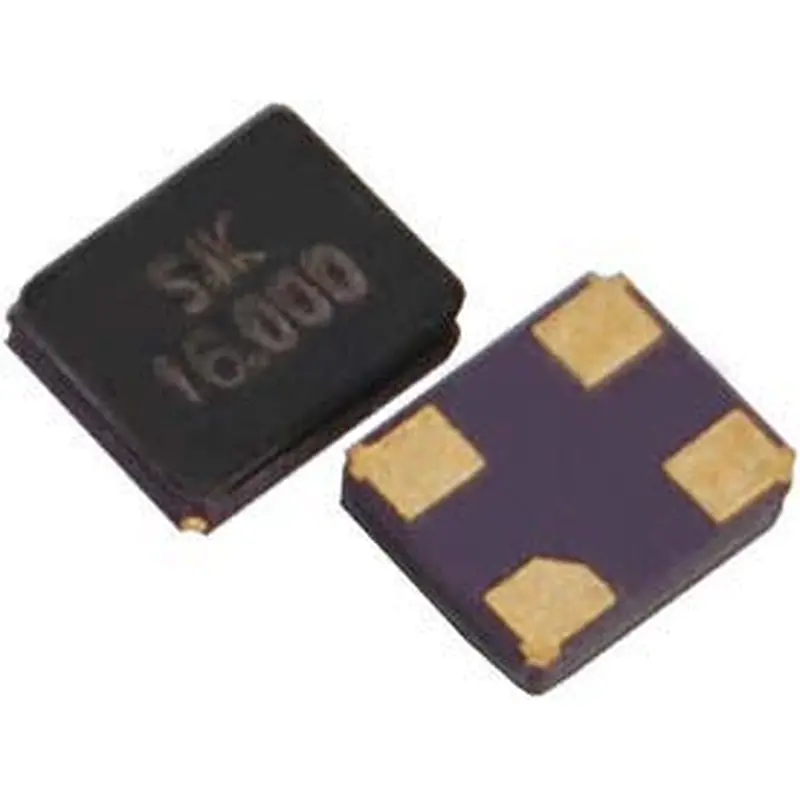

7V Series SMD 3225 Glass Crystal Unit
