Electronical Specifications Of SJK9121 Series LVPECL Output MEMS Programmable Oscillator
Item/Type
SJK9121
Output Type
LVPECL
Frequency Range
1~220MHz
Supply Voltage
2.5V/3.3V/2.25~3.62V
Frequency Stability
±10ppm~±50ppm, or specify
Operating Temperatuer
-20~+70℃, -40~+85℃
Input Voltage High (VIH)
70% Vdd
Input Voltage Low (VIL)
30% Vdd
Input Pull-up Impedance
250KΩ Μax. (Pin1 Logic High)
2MΩ Μin. (Pin1 Logic Low)
Start-up Time
10ms Max.
Resume Time
10ms Max.
Duty Cycle
45~55%
Current Consumption
69mA Max.
OE Disable Supply Current
35mA Max.
Output Disable Leakage Current
1μA Max.
Standby Current
100μA Max.
Maximum Output Current
30mA Max.
Output High Voltage (VOH)
Vdd-1.1V
Output Low Voltage (VOL)
Vdd-1.9V
Output Differential Voltage Swing
2.0V Max.
Rise/Fall Time
700ps Max.
OE Enable/Disable Time
115ns Max.
RMS Period Jitter
1.7pS Max.
RMS Period Jitter (Random)
0.85pS Max.
Storage Temperature Range
-60~+150℃
Packing Unit
3225: 3000pcs./reel
5032 /7050: 1000pcs./reel
Pin Functions & Dimensions:
Pin Functions
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

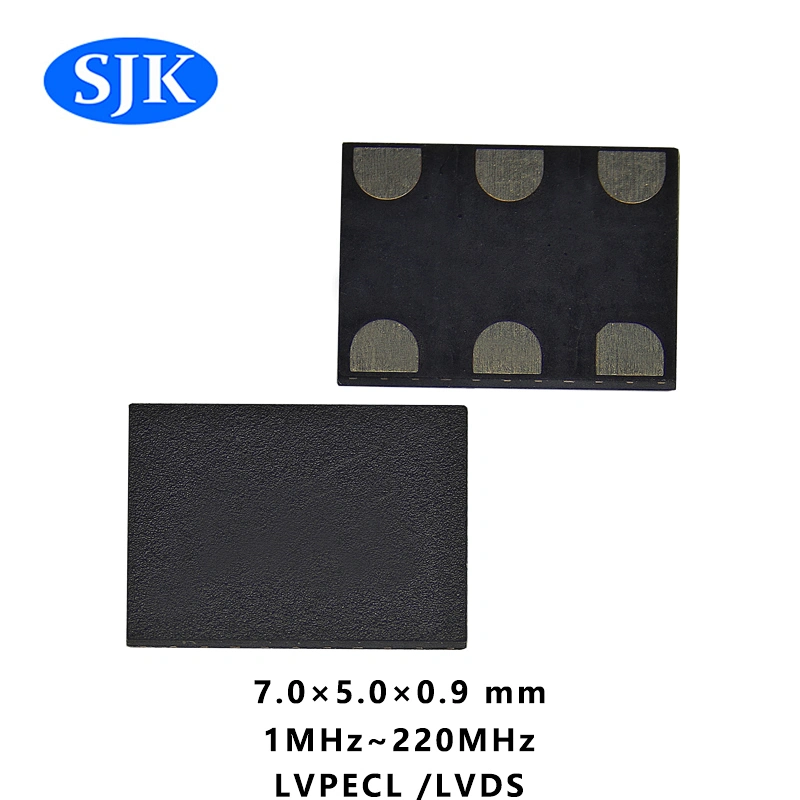

SJK9121 Series LVPECL MEMS Oscillators
