Electronical Specifications Of SJK9121 Series LVDS MEMS Programmable Oscillator
Item/Type
SJK9121-LVDS
Output Type
LVDS
Frequency Range
1~220MHz
Supply Voltage
2.5V/3.3V/2.25~3.62V
Frequency Stability
±10ppm~±50ppm, or specify
Operating Temperatuer
-20~+70℃, -40~+85℃
Input Voltage High (VIH)
70% Vdd
Input Voltage Low (VIL)
30% Vdd
Input Pull-up Impedance
250KΩ Μax. (Pin1 Logic High)
2MΩ Μin. (Pin1 Logic Low)
Start-up Time
10ms Max.
Resume Time
10ms Max.
Duty Cycle
45~55%
Current Consumption
55mA Max.
OE Disable Supply Current
35mA Max.
Differential Output Voltage
450mV Max.
Output Disable Leakage Current
1μΑ Μax.
Standby Current
100μA Max.
VOD Magnitude Change
50mV
Offset Voltage
1.375V Max.
VOS Magnitude Change
50mV Max.
Rise/Fall Time
700ps Max.
OE Enable/Disable Time
115ns Max.
RMS Period Jitter
1.7pS Max.
RMS Period Jitter (Random)
0.85pS Max.
Storage Temperature Range
-60~+150℃
Packing Unit
3225: 3000pcs./reel
5032 /7050: 1000pcs./reel
Pin Functions & Dimensions:
Pin Functions
Dimensions[mm]
Send Message
Preview on Mobile
X
Wechat scan code or copy link mobile phone open
X
Copy the link

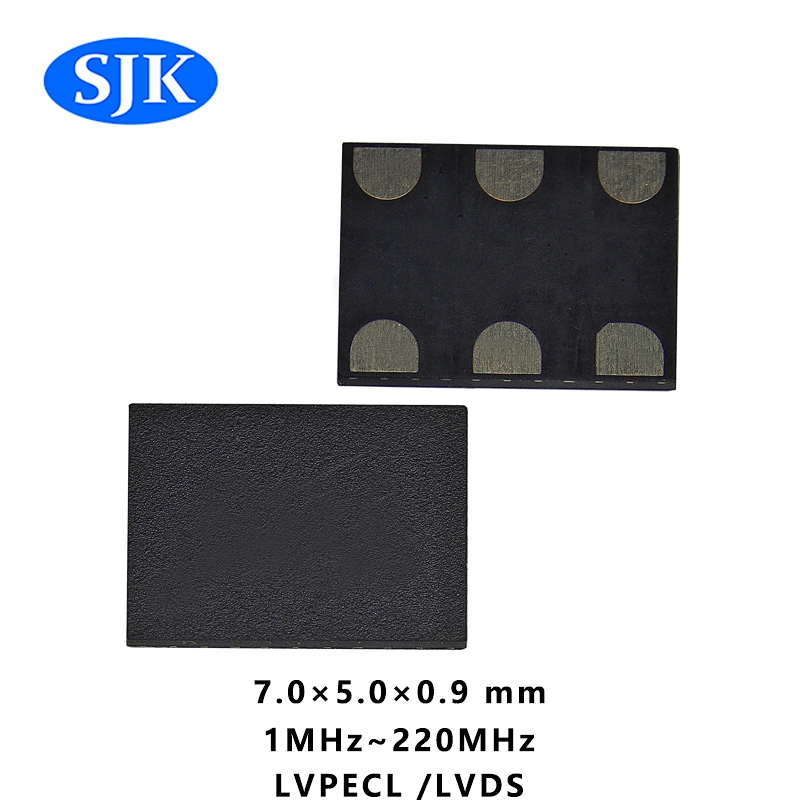

SJK9121 LVDS Oscillator
SJK9121 LVDS Oscillator
0.00~0.00
SJK MEMS oscillators-SJK9121 Series LVDS oscillator, frequency range from 1MHz to 220MHz, 2.5V to 3.3V supply voltage, size with 3225, 5032, 7050, frequency stability 20ppm, application for ethernet, Network, system clocking, FPGA, etc, and more information.

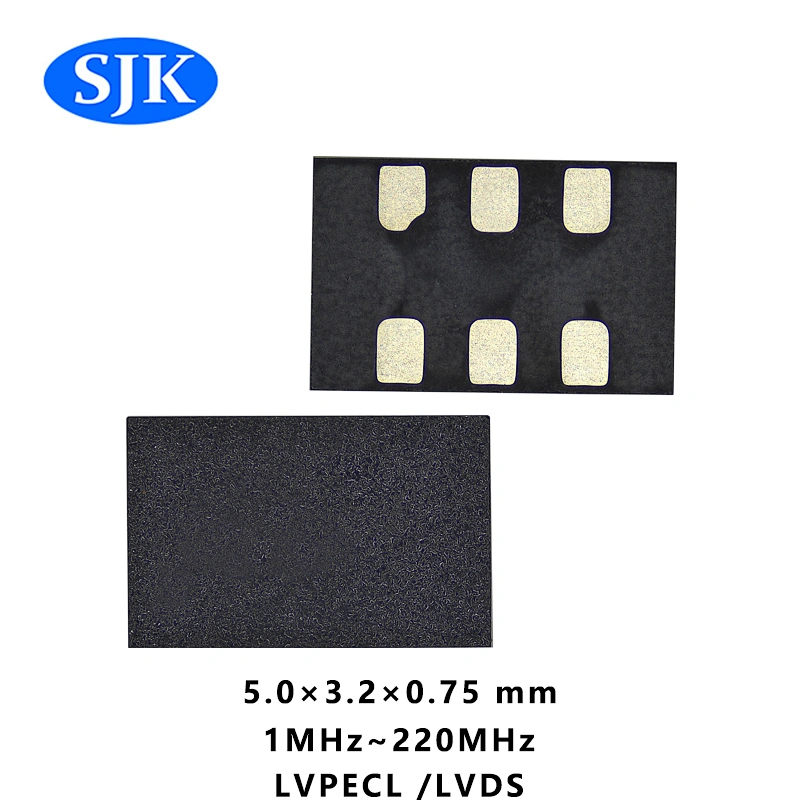

SJK9121 LVDS Oscillator
