Features:
2 pads surface mount package
2012 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of 0.6mm.
High reliable environmental performance.
Automatic mounting and reflow soldering.
Application for small communication device, Clock, Wireless communication, Telecommunication, Wave clock, RFID products and more.
RoHS Compliant /Pb-Free
Electrical Specifications:
| Item /Type | 7R (2012 SMD 32.768kHz Crystal Unit) |
| Frequency Range | 32.768kHz |
| Frequency Tolerance | ±20ppm, or specify |
| Load Capacitance | 12.5pF, or specify |
| Operating Temperature | -20~+70℃, -40~+85℃ |
| Storage Temperature | -55~+125℃ |
| Turnover Temperature | ±25℃±5℃ |
| Parabolic Coeffcient | (0.03±0.01)*10-6/℃2 |
| Drive Level | 0.5μW Max. |
| Shunt Capacitance | 1.3pF Typ. |
| Aging (at 25℃) | ±3ppm at first year |
| Series Resistance | 90KΩ Max. |
| Packing Unit | 3000pcs. /Reel |
Dimensions [Units: mm]
Wechat scan code or copy link mobile phone open
X

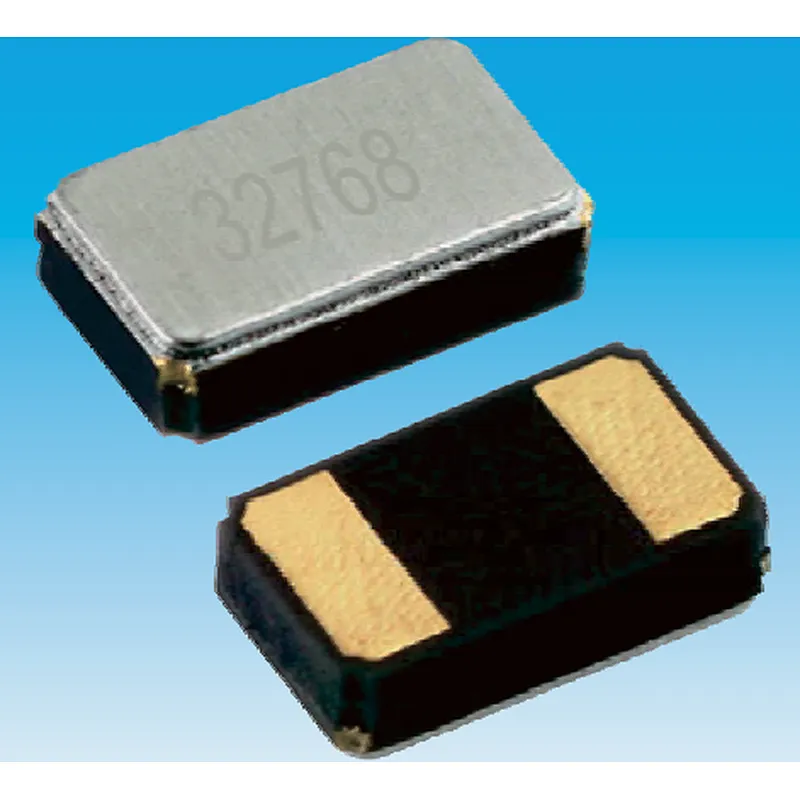

7R Series 32.768kHz SMD Crystal Unit
