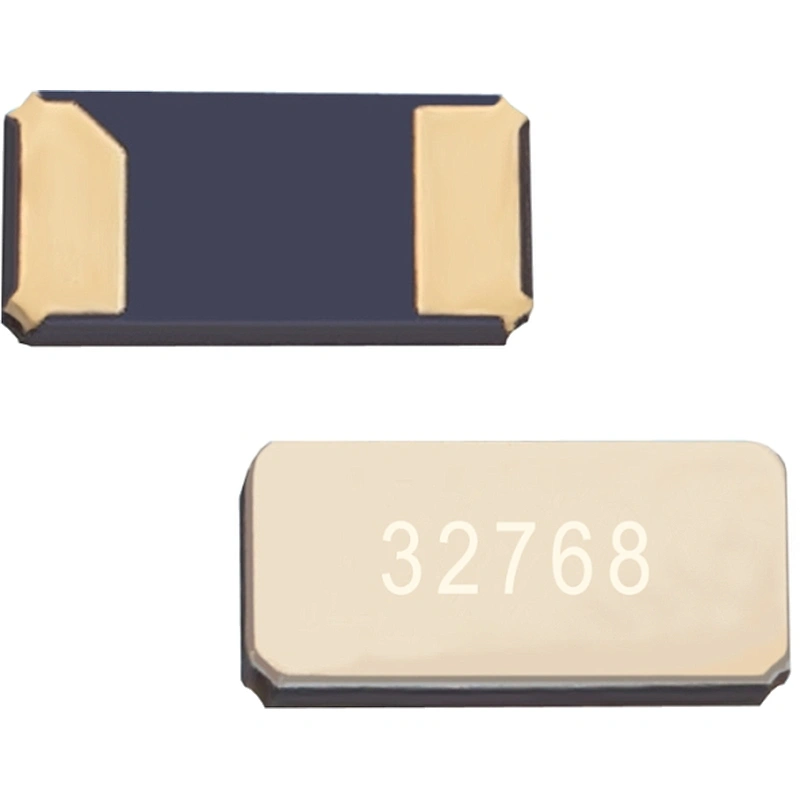

3215 size miniature and lightweight SMD tuning fork crystal resonator with a low profile of .75mm.
High precision andhigh reliability.
High reliable environmental performance.
Automatic mounting and reflow soldering.
Applicaiton for mobile communications, wave clock, automotive applications, small communication device, etc.
RoHS Compliant /Pb-Free
Specifications:
Item /Type
7L (32.768kHz SMD Crystal Resonator)
Frequency Range
32.768kHz
Load Capacitance
12.5pF, or specify
Drive Level
1.0μW Max.
Frequency Tolerance
±20ppm, or specify
Series Resistance
70KΩ Max.
Turnover Temperature
±25℃±5℃
Parabolic Coefficient
(0.03±0.01)*10-6/℃2
Operating Temperature
-20~+70℃, -40~+85℃
Storage Temperature
-55~+125℃
Shunt Capacitance
1.0pF Typ.
Aging (at 25℃)
±3ppm at first year
Packing Unit
3000pcs. /Reel
Dimensions [mm]
