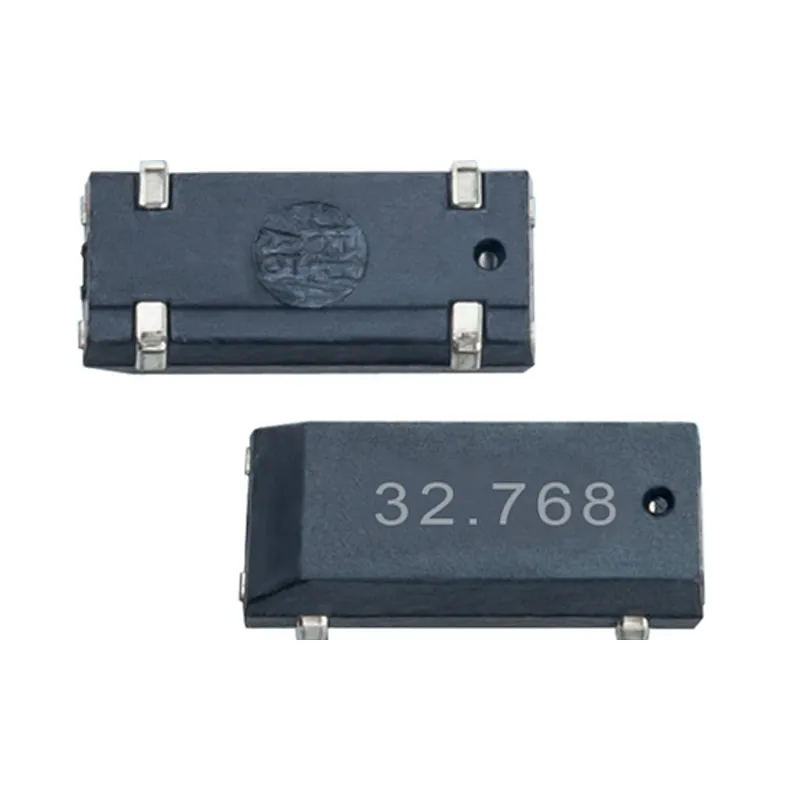

Features Of 6LC Series 308C 32.768kHz SMD Crystal Unit:
Plastic molded 32.768kHz SMD crystal unit of heat resistance
High precision and tight reliability
Small size with 3.8×8.0×2.4 mm
High reliable environmental performance
Automatic mounting and reflow soldering
Application for Smart communication device, Clock, microcomputer, etc
RoHS Compliant
Electronic Specifications Of 6LC Series 308C 32.768kHz SMD Crystal Unit:
Item/Type
6LC Series (308C 32.768kHz SMD Crystal Unit)
Frequency Range
32.768kHz
Frequency Tolerance
±20ppm, or specify
Load Capacitance
6.0~12.5pF, or specify
Operating Temperature
-40~+85℃, or specify
Storage Temperature
-55~+125℃
Drive Level
1.0μW Max.
Turnover Temperature
±25℃±5℃
Parabolic Coefficient
(-0.034±0.005)×10-6/℃
Shunt Capacitance
1.5pF Typ.
Aging (at25℃)
±3ppm/Year Max.
Packing Unit
3000pcs.
Dimensions[mm]
